Galileo
The system is a combination of a high resolution 3D vision system and a last generation anthropomorphic robot.
The result is a robotic unit able to carry out all the variables that characterise the resin application process, that to date is essentially on an artisan scale, with the reliability that only an automated industrial process can guarantee.
WORKING CYCLE
The GALILEO processing system is divided into two separate phases:
The SCANNING PHASE, during which a 3D model of the slab is made. This makes it possible to detect with extreme accuracy the thickness at every point, the perimeter of the slab and the presence of hollow spots classified according to suitable criteria in order to then retouch them where necessary.

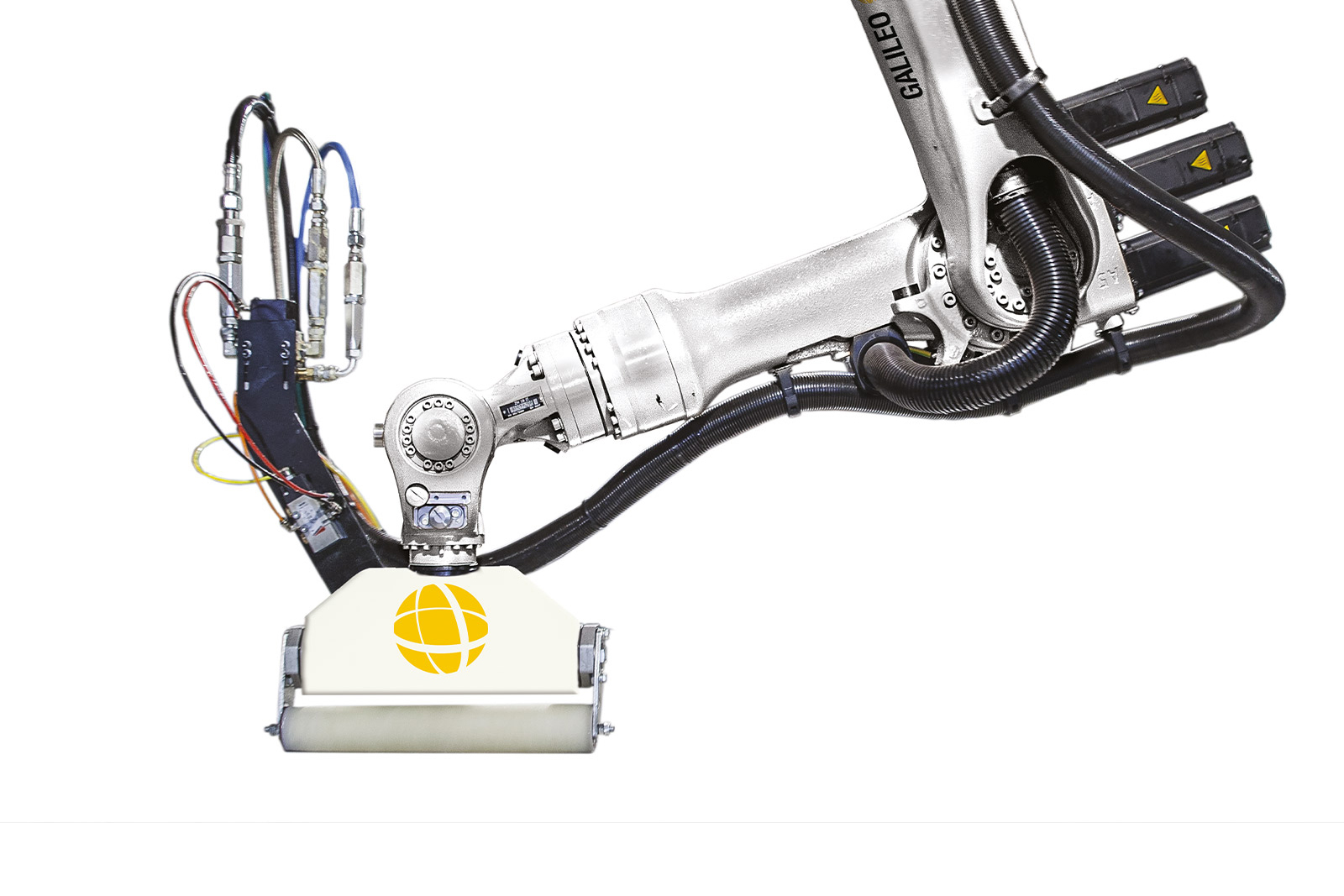

The STAGE OF APPLICATION of the resin and successive ritouch work if necessary is done by an anthropomorphic robot by an anthropomorphic robot that receives all the trajectories for applying the resin and the location/ characteristics of the fractures to be restored from the
scanning machine.
THE ONLY EXISTING SYSTEM which can actually replace workmanship in resin treatment and optimize the use of resin, reducing the consumption per square meter from 20 to 35%.
THE RESINING UNIT IS COMPLETE WITH:
- A push-pull suction cabin to eliminate vapours outside the application areas
- A built-in device for automatic net application
Today’s GALILEO is a machine that, in spite of its intrinsic complexity, has achieved great reliability, ease of use and high quality of application thanks to the continuous development of the end-effector coordinated with a reader capable of providing very precise slab profile information.
It is also able to rapidly adapt itself to the most different needs of the work type, the required production per hour, material characteristics, epoxy blends and the type of reinforcement net.
-
Versions
GALILEO high performance
able to process a slab per minute
GALILEO high quality
capable to manage complex tasks with high accuracy, such as the application of reinforcement nets characterized by high absorption of the mixture
GALILEO high colour
the optimum solution for pigmentation, by means of a suitable dosing system, of marble or granite slabs
GALILEO high viscosity
specially designed for automatic and controlled application of dense and viscous mixture like mastic
